Bullet Chart

A bullet chart is a variation of a bar chart that displays performance of a measure (primary measure) and its progress towards a goal (target measure). Optionally, the primary measure can also be compared to another measure (comparative measure).

Structure

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { BulletChart } from "@gooddata/sdk-ui-charts";

<BulletChart
    primaryMeasure={<primaryMeasure>}
    targetMeasure={<targetMeasure>}
    comparativeMeasure={<comparativeMeasure>}
    config={<chart-config>}
    …
/>

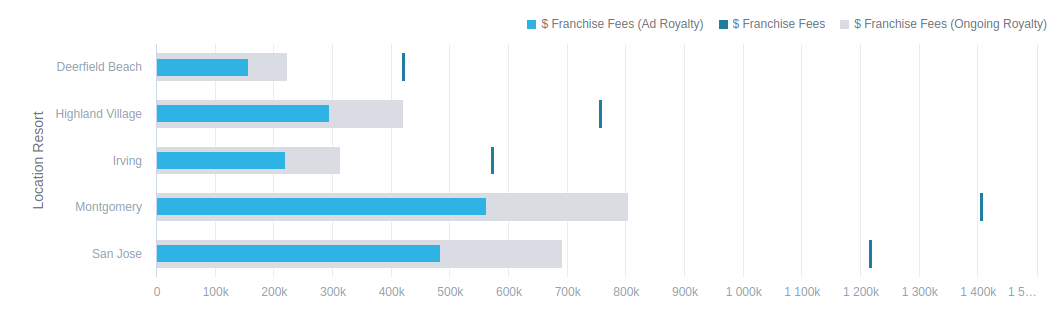

Example

import "@gooddata/sdk-ui-charts/styles/css/main.css";
import { BulletChart } from "@gooddata/sdk-ui-charts";
import * as Md from "./md/full";

const style = { height: 300 };

<div style={style}>
    <BulletChart
        primaryMeasure={Md.$FranchiseFeesAdRoyalty}
        targetMeasure={Md.$FranchiseFees}
        comparativeMeasure={Md.$FranchiseFeesOngoingRoyalty}
        viewBy={Md.LocationResort}
    />
</div>

Colors

To appropriately visualize the displayed data, bullet charts use colors provided by a color array or a palette in the config in the following way:

For the primary measure, the first color from the color array/palette is used.
For the target measure, a darker shade of the first color is used.
For the comparative measure, gray is used.

To override the default coloring scheme and set a custom color for each measure, use color mapping.

Properties

Name	Required?	Type	Description
primaryMeasure	false	IMeasure	The measure displayed as the primary measure
targetMeasure	false	IMeasure	The measure displayed as the target measure
comparativeMeasure	false	IMeasure	The measure displayed as the comparative measure
viewBy	false	IAttribute \| Attribute[]	The attribute definition or an array of two attribute definitions. If set to a two-attribute array, the first attribute wraps up the second one.
filters	false	IFilter[]	An array of filter definitions
sortBy	false	ISortItem[]	An array of sort definitions
config	false	IChartConfig	The chart configuration object
backend	false	IAnalyticalBackend	The object with the configuration related to communication with the backend and access to analytical workspaces
workspace	false	string	The workspace ID
locale	false	string	The localization of the chart. Defaults to `en-US`.
drillableItems	false	IDrillableItem[]	An array of points and attribute values to be drillable
ErrorComponent	false	Component	A component to be rendered if this component is in error state
LoadingComponent	false	Component	A component to be rendered if this component is in loading state
onError	false	Function	A callback when the component updates its error state
onExportReady	false	Function	A callback when the component is ready for exporting its data
onLoadingChanged	false	Function	A callback when the component updates its loading state
onDrill	false	Function	A callback when a drill is triggered on the component

The following example shows the supported config structure with sample values. For the descriptions of the individual options, see Chart Config.

{
    colors: ["rgb(195, 49, 73)"],
    colorPalette: [{
        guid: "01",
        fill: {
            r: 195,
            g: 49,
            b: 73
        }
    }],
    colorMapping: [{
        predicate: (headerItem) => {
            return headerItem.measureHeaderItem && (headerItem.measureHeaderItem.localIdentifier === "m1_localIdentifier")
        },
        color: {
            type: "guid",
            value: "01"
        }
    }],
    xaxis: {
        visible: true,
        labelsEnabled: true,
        rotation: "auto"
    },
    yaxis: {
        visible: true,
        labelsEnabled: true,
        rotation: "auto",
        min: "20",
        max: "30"
    },
    legend: {
        enabled: true,
        position: "top",
    },
    dataLabels: {
        visible: "auto"
    },
    grid: {
        enabled: true
    }
    separators: {
        thousand: ",",
        decimal: "."
    }
}
